Bellows

Bellows are elastic, hose-like protective covers made of different materials that adapt to defined movement sequences. Through the use of high-tech textiles, combined with selected coatings, they find a wide range of applications. On the one hand, they protect machine parts from external influences (especially soiling such as dust, oils and greases) and, on the other hand, protect the environment (eg from heat, liquids, flying sparks, dust)

Ceratec bellows are always made by hand exactly to customer specifications.

We distinguish our bellows according to the type of production:

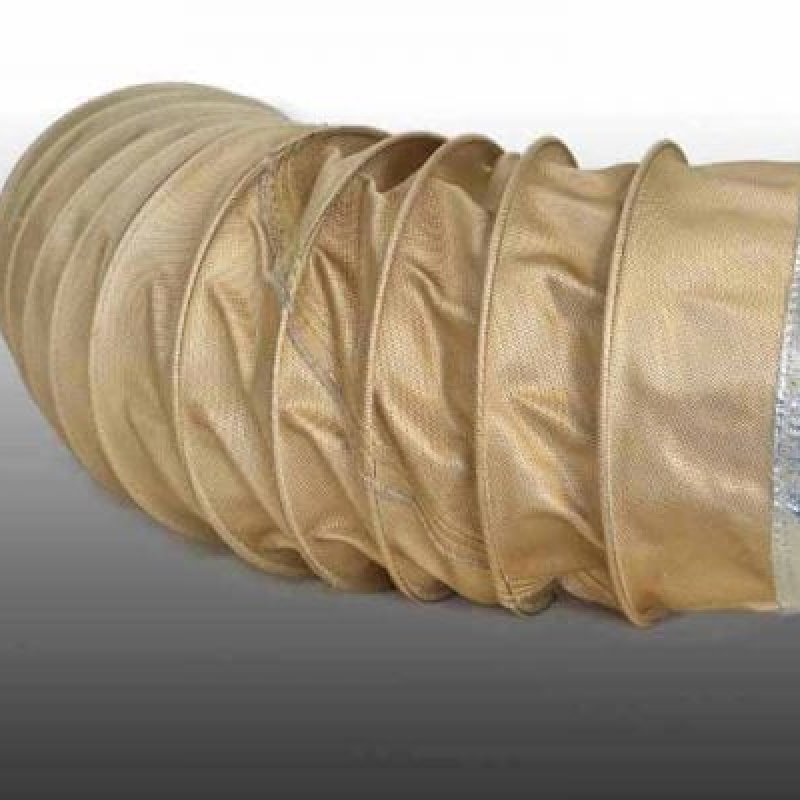

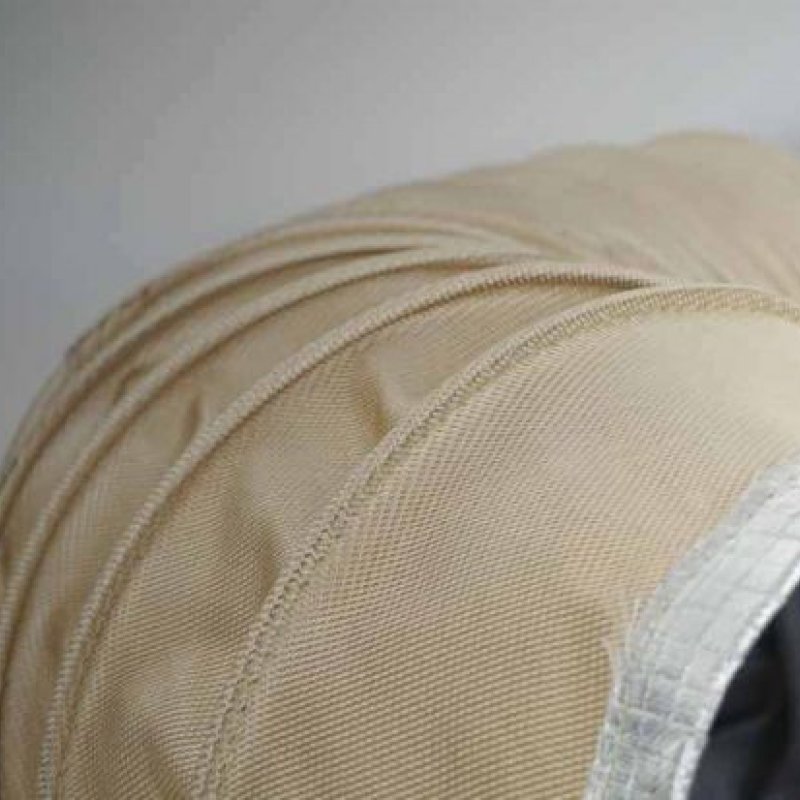

• Annulus bellows: is sewn together from individual, punched or cut circular rings. The ends are cylindrically shaped so that attachment by means of hose binders is possible. A divisible design is not possible with a circular bellows.

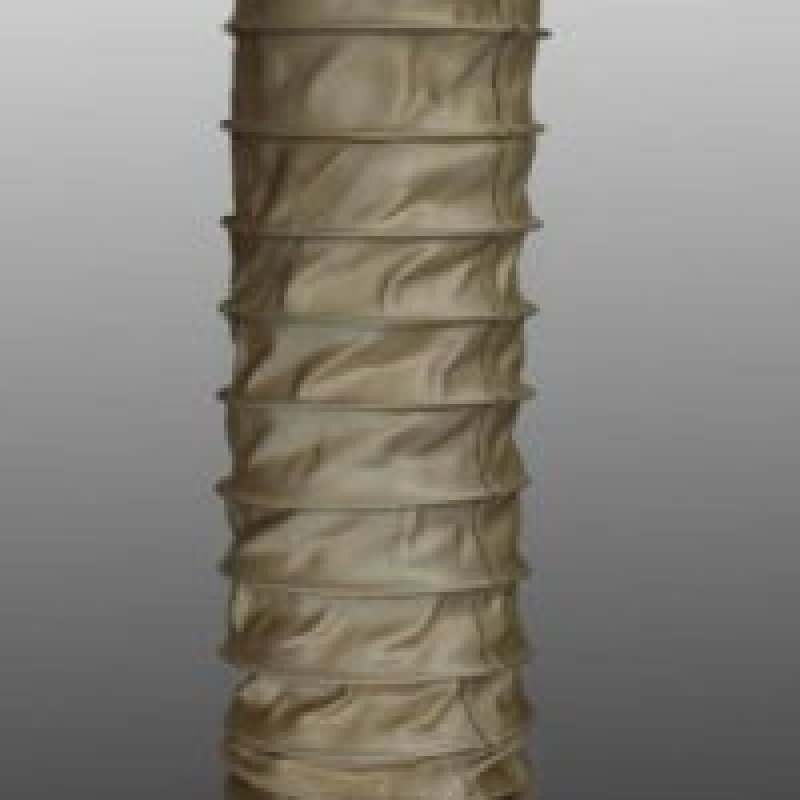

• Dressier bellows: A cylinder is formed by the installation of wire rings (if necessary also tension springs or pull-out locks) to a bellows. Through the use of divisible wire rings, a skin pass can be easily mounted around the machine part and closed by zipper, Velcro or snaps.
• Other kinds: A stretch bellows is made from one piece (cannot be divided) and provided with circular steel rings (similar to a skin-pass bellows). By using the diagonal stretch capacity of the fabric, you get a good axial range of motion. Here, too, attachment using hose ties is possible. Furthermore, cylinders (pouring funnels) reinforced with a sealing ring in various diameters and lengths, simple covers and (heat protection) curtains, etc. can be manufactured.

Depending on the type of bellows, there are the following possible versions:

• Divisible by zipper, velcro or press studs (only for dressage bellows)
• With / without flange or flange preparations
• Perforations and holes according to customer specifications
• Round, angular or combined to form
• Tissue

Tissue:
Which is the right fabric for a bellows, depends on the given conditions of use and requirements.

Above all, temperature and medium are of great importance in the selection of materials:

• Tarpaulin: suitable for temperatures up to 70 C, often used as dust protection
• Various glass fabrics - the "all-rounder" among our fabrics: either with PU or silicone coating on both sides, suitable for a temperature range of 250 - 550 C.
• Aramid fabric with aluminum coating: suitable for temperatures up to approx. 350 C, has a high tensile strength
• Silicate fabric with aluminum coating / aluminum foil: for temperatures up to about 1000 C, is often used in steelworks and foundries due to the temperature resistance

Ceratec bellows are mainly used as cover and protection for cardan shafts, piston rods, cylinders etc. in various industries. Among other things, they protect against dirt of all kinds (dust, metal and wood chips, etc.), liquids, heat, oils and fats, flying sparks, etc.
Both our bellows and our fabric compensators are designed for the high temperature range and can be used at temperatures up to 1000 C. A suitable fabric construction also allows use under aggressive conditions (eg by flue gases).

We would be happy to advise you personally and create an individual solution for your requirements.
